How to add PNG graphics, settings and channels in FlexiPRINT UV 22 (from this page)

The live page body is short; the on-page "Video Transcript" block is the step source. Raw auto-caption is not copied in full; no transcript invented. Cleaned steps from that live block:

  1. This is Mini-Series Part 4 for SAi FlexiPRINT UV 22 (H1 spelling). Body Mini-Series is https://softwaretraining.co.za/?p=31418 (not landed; pretty slug not printed on that body link). Body previous is ICC Color Profiles at https://softwaretraining.co.za/?p=31421 (not recrawled; pretty slug not printed on that body link; same post as already-ingested avia prev pretty slug flexiprint-add-icc-profiles; dest 33354 not touched). Body next is Use Alpha Channel at https://softwaretraining.co.za/?p=31423 (not fetched; pretty slug not printed on that body link). Avia prev on this URL is already-ingested Part 3 https://softwaretraining.co.za/flexiprint-add-icc-profiles (pretty slug printed; not invented; dest 33354 not touched; leftover Part 3 HTML not reused; WP 31421). Avia next is a different FlexiPRINT page at https://softwaretraining.co.za/flexiprint-alpha-channel-option (pretty slug printed; not invented; not fetched; next-fire).
  2. The live block is about adding PNG graphics to a job in FlexiPRINT, plus basic settings and an overview of the channel feature. The live body says most of the technical printer setup is already out of the way. The live block says the channel preview matters later when making custom white and varnish channels.
  3. To get graphics in: create the graphics; the tutorial uses a PNG with a transparent background. Drag and drop that PNG straight into the programme. Other ways named on this page: open the job folder, locate the file, add; or File then add job. Drag and drop is named as the easiest. The job then shows settings including status on holding from the output defaults set earlier.

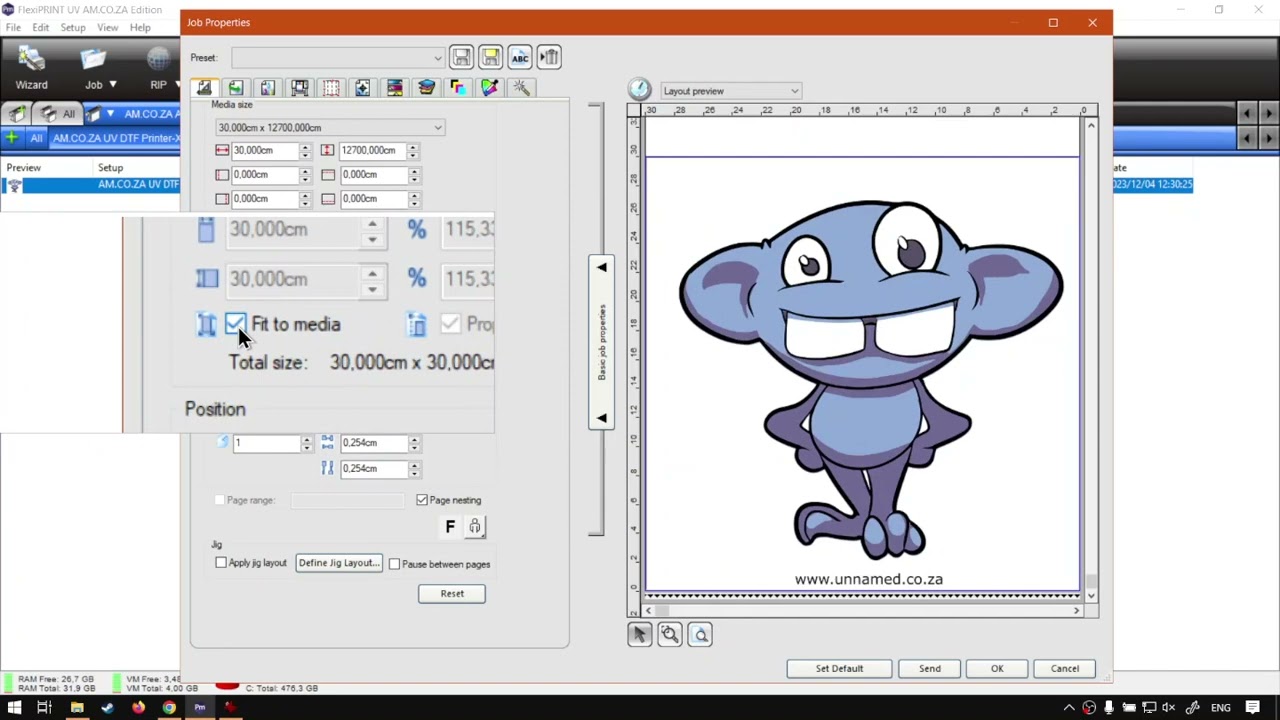

  4. Right-click the job and choose job properties. That opens a dialogue box. Depending on the default printer settings, the graphic may be very big or very small. Adjust job size (width / height). Use percentage is named; proportional is off by default; the tutorial turns proportional on. Fit media fits the graphic to the canvas automatically if the size is known.
  5. With the graphic selected, grab the handles to scale; double-click the middle to rotate (full circle); click and drag to move. If scaling warps the image, turn proportional on so proportions stay relative to the imported image. The tutorial scales the PNG up and centres it. That is the basic layout.
  6. Channel output preview (named on the live block as the control on top). First select preview output channels so the outputs of the channel can be seen (the live block says it takes a little while to load). If you know CMYK (live-block spelling includes "CNYK"; not rewritten), the channels are visible. Checkboxes preview multiple channels together or one at a time. All on / all off is named; all off does not preview.
  7. At the bottom of that panel the live block names spot white and spot varnish. Those are the important channel rows for later custom white and varnish channels. Clicking them shows the current white layer and the current varnish layer, so you can see what will be varnished and what will be white. The live block says this preview is important and useful, then names a flaw already visible here that the next video will cover and show how to fix. Avia next on this URL is FlexiPRINT Use Alpha Channel Part 5, not a PrintUP page.
  8. Recap named on this page: that is adding PNG graphics, basic settings, and a channel-preview overview. The live closer names softwaretraining.co.za and a request-training-video form. The next video named on this page is Use Alpha Channel. Avia next on this URL is FlexiPRINT alpha-channel-option Part 5, not a PrintUP page.
